TRACO Power THD 10N 10 Watt Isolated DC/DC Converters

TRACO Power THD 10N 10 Watt Isolated DC/DC Converters offer an optimized cost/performance ratio of DC/DC converters with an output power of 10 Watt. THD 10N Series comes with an internal EMI filter to meet EN55022, class A without external components. General features like no minimum load requirement, overload protection, and high efficiency add design versatility. TRACO Power THD 10N Series 10 Watt Isolated DC/DC Converters utilize the popular DIP-24 standard package they are also a drop-in replacement for many cost-critical applications.

Features

  • Wide 2:1 input voltage range
  • Internal EMI-filter meets EN 55022, class A without external components
  • High efficiency up to 87%
  • Operating temperature range -40°C to +85°C
  • No minimum load required
  • I/O isolation 1,500 VDC
  • Overload protection
  • 3-year product warranty

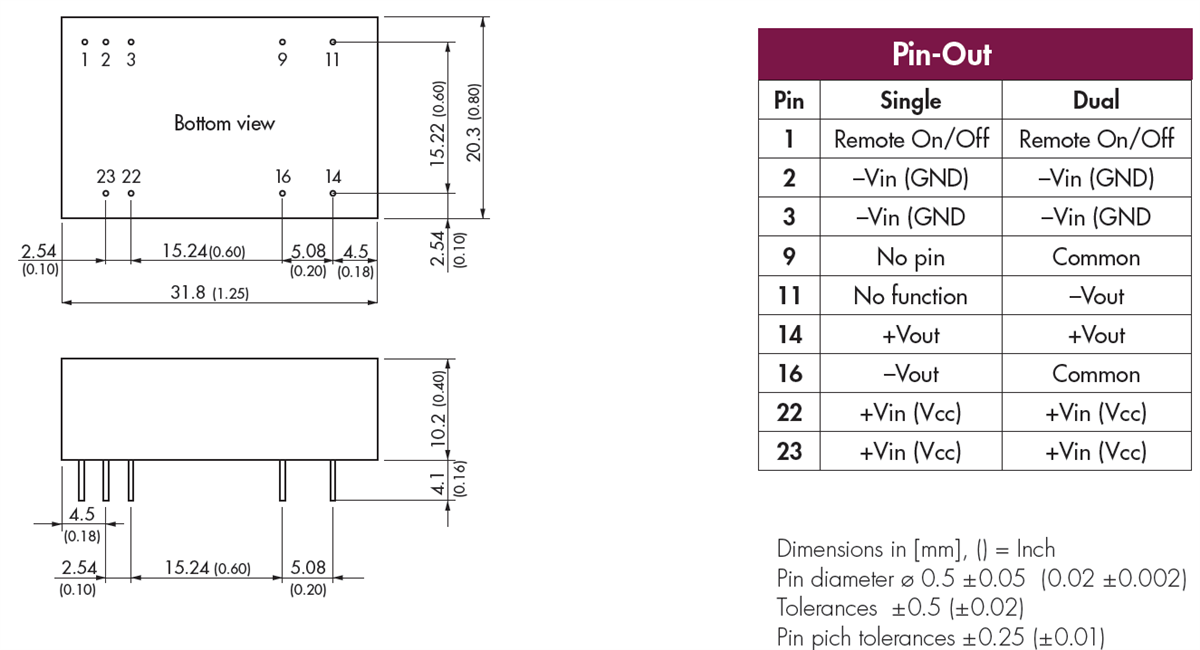

Outline Dimensions

Mechanical Drawing - TRACO Power THD 10N 10 Watt Isolated DC/DC Converters
