Texas Instruments TXG102x Ground-Level Translators
Texas Instruments TXG102x Ground-Level Translators are 2-bit devices that support DC shifts up to ±10V and feature fixed direction and non-galvanic-based voltage. These ground-level translators support both logic-level shifting between 1.71V and 5.5V, as well as ground-level shifting of up to ±10V. The TXG102x ground-level translators help improve noise immunity and power sequencing across different ground domains while providing low power consumption, latency, and channel-to-channel skew. These ground-level translators can support multiple interfaces, including UART, GPIO, and JTAG. The TXG102x ground-level translators operate at -40°C to 125°C operating temperature range. These ground-level translators are ideal for test and measurement, industrial automation, and robotics.
Features
- Supports DC shifts up to ±10V
- AC noise rejection of 20VPP up to 45MHz
- CMTI of 1kV/µs
- Low prop delay (<5ns) and Ch-Ch skew (<0.20ns)
- Greater than 250Mbps
- Low power consumption (0.8mA per channel at 1Mbps, 1.8V)
- Fully configurable dual-rail design allows each port to operate from 1.71V to 5.5V
- 4, 2, 1 channel devices with multiple configurations will be available
- Two device variants:
- TXG1020: 2 forward
- TXG1021: 1 forward, 1 reverse
- Supports VCC disconnect feature (I/Os are forced into high-Z)
- Schmitt-trigger inputs allow for slow and noisy signals
- Inputs with integrated static pull-down resistors prevent channels from floating
- -40°C to 125°C operating temperature range
- Latch-up performance exceeds 100mA per JESD 78, class II:
- ESD protection exceeds JESD 22
- 2500V human-body model
- 500V charged-device model
- Package options provided:
- DSG (WSON-8)
- DDF (SOT-8)
- D (SOIC-8)
Applications
- Test and measurement
- Industrial automation
- Appliances
- Robotics

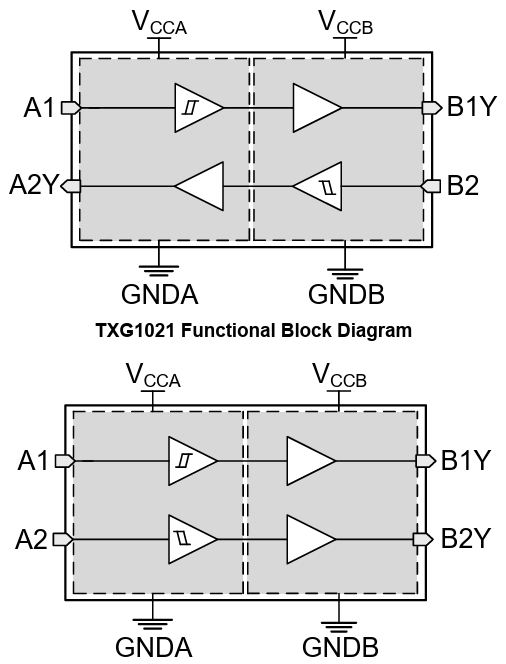

TXG1020 and TXG1021 Functional Block Diagram

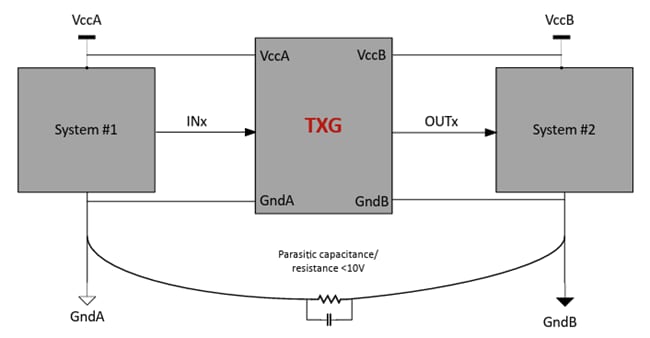

TXG Simplified Diagram
