ROHM Semiconductor CSL901xW Surface Mount Chip LEDs

ROHM Semiconductor CSL901xW Surface Mount Chip LEDs are low current emission type LEDs. The devices feature AlGaInP, a 1.8V forward voltage, and a brightness rank of 1. The ROHM CSL901xW is available with milky white diffused resin in a 1.6mm x 8mm (t=0.55) package size.

Features

  • 20mA IF@VF
  • 1.8V Forward voltage (Typ)
  • Brightness rank of 1
  • Operating temperature -40°C to 85°C
  • Storage temperature -40°C to 100°C
  • 1.6mm x 8mm (t=0.55) Package size

Applications

  • Home appliance
  • Industrial equipment

Additional Resources

Comparison Chart

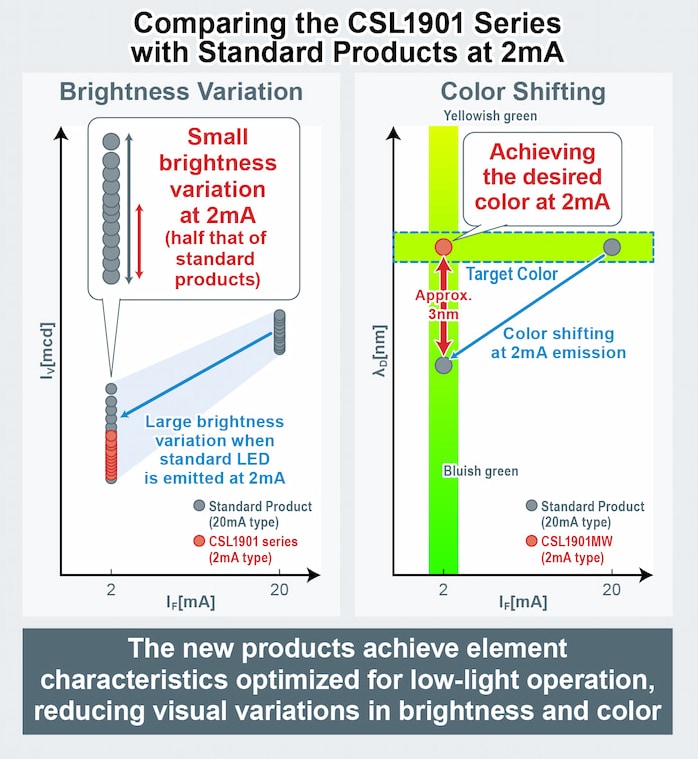

Performance Graph - ROHM Semiconductor CSL901xW Surface Mount Chip LEDs

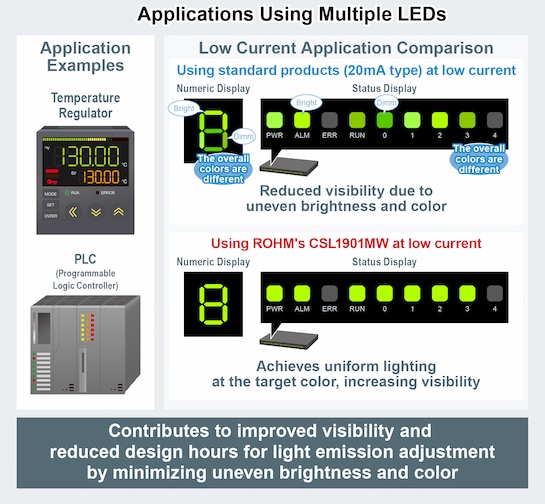

Applications with LEDs

Infographic - ROHM Semiconductor CSL901xW Surface Mount Chip LEDs
View Results ( 5 ) Page
N.º de artículo Hoja de datos Descripción Longitud de onda/Color de temperatura
CSL1901UW1 CSL1901UW1 Hoja de datos Luces LED unicolor Red Surface Mount Chip LEDs featuring AlGaInP packed with milky white diffused resin. 620 nm
CSL1901VW1 CSL1901VW1 Hoja de datos Luces LED unicolor Red Surface Mount Chip LEDs featuring AlGaInP packed with milky white diffused resin. 630 nm
CSL1901YW1 CSL1901YW1 Hoja de datos Luces LED unicolor Yellow Surface Mount Chip LEDs featuring AlGaInP packed with milky white diffused resin. 590 nm
CSL1901DW1 CSL1901DW1 Hoja de datos Luces LED unicolor Orange Surface Mount Chip LEDs featuring AlGaInP packed with milky white diffused resin. 605 nm
CSL1901MW1 CSL1901MW1 Hoja de datos Luces LED unicolor Yellow Green Surface Mount Chip LEDs featuring AlGaInP packed with milky white diffused resin. 570 nm
Publicado: 2022-08-16 | Actualizado: 2022-11-11
