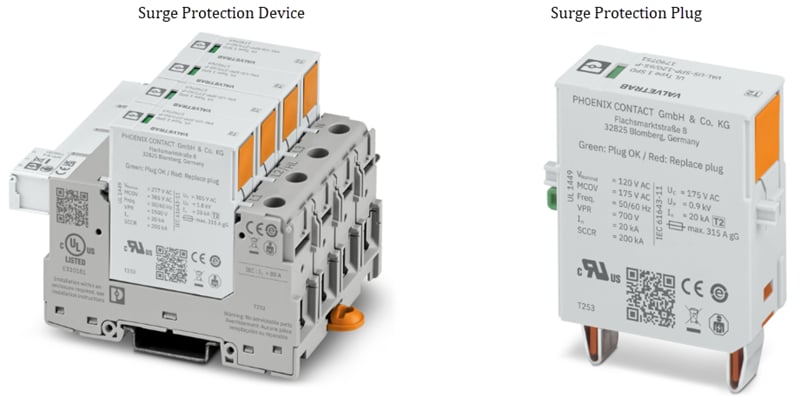

Phoenix Contact VAL-US-SPP Surge Protection Devices

Phoenix Contact VAL-US-SPP Surge Protection Devices are engineered for common North American power supply systems in accordance with NEMA standards. These UL-listed surge protectors offer robust protection, innovative installation, safety features, and easy integration. The VAL-US-SPP surge protectors also include plug‑in and modular remote signaling to simplify installation and reduce maintenance time. The reinforced insulation and rapid disconnection enhance both user safety and system operational reliability.

Features

  • Easy integration into existing systems with UL open-type listed
  • Suitable for all standard network configurations in accordance with NEMA
  • Miswiring and touch protection
  • Low tightening torque
  • Easy system status monitoring with an optical status indicator and a remote indication contact
  • Reinforced insulation between the main and auxiliary circuits
  • Improved disconnection
  • Pluggable protective devices
  • Available and can be used throughout Europe
Phoenix Contact VAL-US-SPP Surge Protection Devices
View Results ( 44 ) Page
N.º de artículo Hoja de datos Régimen de voltaje Régimen de corriente Longitud Ancho Altura Banda de frecuencias Régimen de inflamabilidad Estilo de montaje Estilo de terminación RoHS - Mouser
1790745 1790745 Hoja de datos 120 VAC 80 A 71.5 mm 35.6 mm 109.1 mm 50 Hz to 60 Hz UL 94 V-0 DIN Rail Screw Y
1790753 1790753 Hoja de datos 120 VAC 80 A 71.5 mm 35.6 mm 109.1 mm 50 Hz to 60 Hz UL 94 V-0 DIN Rail Screw Y
1790767 1790767 Hoja de datos 240 VAC, 415 VAC 80 A 71.5 mm 71.2 mm 109.1 mm 50 Hz to 60 Hz UL 94 V-0 DIN Rail Screw Y
1790790 1790790 Hoja de datos 480 VAC 80 A 71.5 mm 53.4 mm 109.1 mm 50 Hz to 60 Hz UL 94 V-0 DIN Rail Screw Y
1790799 1790799 Hoja de datos 240 VAC 54.2 mm 17.5 mm 61.5 mm 50 Hz to 60 Hz UL 94 V-0 Pluggable Push-In Y
1790750 1790750 Hoja de datos 120 VAC 80 A 71.5 mm 71.2 mm 109.1 mm 50 Hz to 60 Hz UL 94 V-0 DIN Rail Screw Y
1790752 1790752 Hoja de datos 120 VAC 80 A 71.5 mm 17.8 mm 110.8 mm 50 Hz to 60 Hz UL 94 V-0 DIN Rail Screw Y
1790743 1790743 Hoja de datos 120 VAC 61.5 mm 17.5 mm 54.2 mm 50 Hz to 60 Hz UL 94 V-0 Pluggable Push-In Y
1790744 1790744 Hoja de datos 120 VAC 80 A 71.5 mm 17.8 mm 110.8 mm 50 Hz to 60 Hz UL 94 V-0 DIN Rail Screw Y
1790747 1790747 Hoja de datos 120 VAC, 240 VAC 80 A 71.5 mm 35.6 mm 109.1 mm 50 Hz to 60 Hz UL 94 V-0 DIN Rail Screw Y
