Littelfuse SVxx12-25xx High Junction Temperature SCRs
Littelfuse SVxx12-25xx High Junction Temperature SCRs feature a low gate current trigger level of 6mA or 10mA maximum at approximately 1.5V. The SVxx12-25xx SCRs operate at -40°C to +150°C junction temperature range and 600V voltage rating. These SCRs are used in applications such as phase control in heating, motor speed controls, converters/rectifiers, inrush current control, and capacitive discharge ignitions.
Features
- Halogen free and RoHS compliant
- High dv/dt performance
- +150°C maximum junction temperature
- SVxx12xx
- Surge capability up to 120A at 60Hz half cycle
- SV6016Dx
- Surge capability up to 200A at 60Hz half cycle
- SVxx16xx
- Surge capability up to 225A at 60Hz half cycle
- SVxx20xx
- Surge capability up to 300A at 60Hz half cycle
- SVxx25xx
- Surge capability up to 350A at 60Hz half cycle
Applications
- AC Generator (ACG) rectifiers
- Battery voltage regulators
- Generic converters
- Inrush current controllers
- Power tools
- Home / brown goods and white goods appliances
- Phase control in heating
- Motor speed controls
- Converters / rectifiers

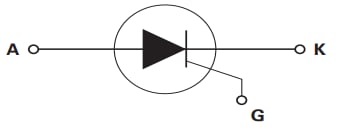

Schematic Symbol
